焊烟除尘器-太阳成

suitable for all kinds of welding (like welding, carbon dioxide protection welding, mag welding, carbon arc gas welding, gas fusion cutting, special welding, etc.), polishing, cutting, grinding and other places to produce soot and dust purification...【】

收缩介绍

wechat

24-hour service telephone

  • introduction
  • advantage
  • parameter
  • case

suitable for all kinds of welding (like welding, carbon dioxide protection welding, mag welding, carbon arc gas welding, gas fusion cutting, special welding, etc.), polishing, cutting, grinding and other places to produce soot and dust purification and rare metals, valuable materials recycling.

working principle: the soot generated during the production operation is sucked into the mobile welding fume purifier through the suction hood by the gravitational force of the fan. first, the secondary fire-retardant net at the air inlet of the purifier can be used to process large particles and polished mars particles. separation and interception is carried out. the pre-filtered soot passes through the second fire-retardant net and the filter protection plate, further blocking the particles and residual mars, and the filtered soot enters the main filter core. the main filter core is made of imported coated polyester fiber material. the filtration efficiency reaches 99.9%, and the purified gas is further purified by activated carbon filter cotton and discharged through the air outlet.

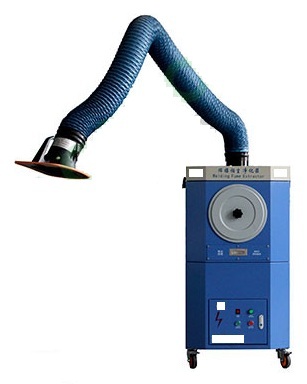

the mobile soot purifier is equipped with a suction arm and two directional grease wheels with two directional belt brakes on the bottom for moving the welding station.

1. it has a special imported turbine and motor, and adopts an anti-overload circuit to prevent motor burnout. it has high safety and stable working performance.

2. backflushing device: after removing the filter cartridge manually, it will be cleaned or connected to the air compressor for semi-automatic cleaning.

3. using the universal arm that can move 360° at will, the smoke can be sucked out from the place where the smoke is generated, which greatly improves the collection rate of the smoke and ensures the health of the workers.

4. the inside of the purifier adopts multiple protective measures against fire hazards and large particle slag, which makes the purifier longer, safer and more reliable.

5. the clean air is evenly guided and dispersed from the grille-shaped exhaust vents, thus reducing the noise to a low level.

6. a special korean-style universal caster with brakes is provided to facilitate the random movement and positioning of the equipment.

7. the performance of consumables in the purifier is stable and easy to replace.


model

ep-wd-2400

dealing air consumption

2400m3/h

power

2.2kw

filtering area

12m2

noise

72±8dba

filtering efficiency

99.9%
