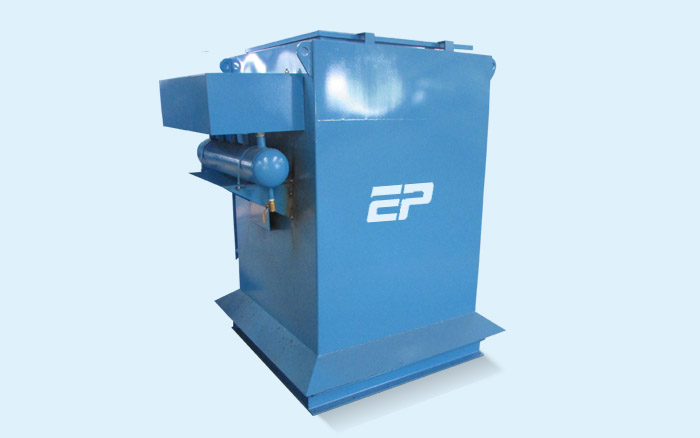

the warehouse top pulse dust collector, this product is a new generation product developed for domestic dust recycling characteristics. the main function is to completely filter and recycle the dust generated during the production, transportation and storage of powder materials, and practically solve the dust. pollution problems can save valuable building resources.
product features: high purification efficiency, large gas processing capacity, stable performance, easy operation, long life of filter bags, small maintenance workload, suitable for machinery, metallurgy, rubber, flour, chemical, pharmaceutical, carbon, building materials, mining and other units .
parameter/model | mcl25 | mcl30 | mcl48 | mcl64 |
filtering area(m2) |
18 | 24 | 36 | 48 |
concentration(g/m3) | <15 |
<15 |
<15 |
<15 |
speed(m3/min) | 2-4 |
2-4 |
2-4 |
2-4 |
air volume(m3/h) | 2160-4320 |
2160-4320 |
2160-4320 |
2160-4320 |
resistance(h2omm) | 120-150 |
120-150 |
120-150 |
120-150 |
weight of main body(kg) | 350 | 500 | 620 | 760 |
dimensions:(lxwxh) | 1100x1100x1920 | 1270x100x2665 | 1600x1300x2665 | 1600x1600x2665 |
