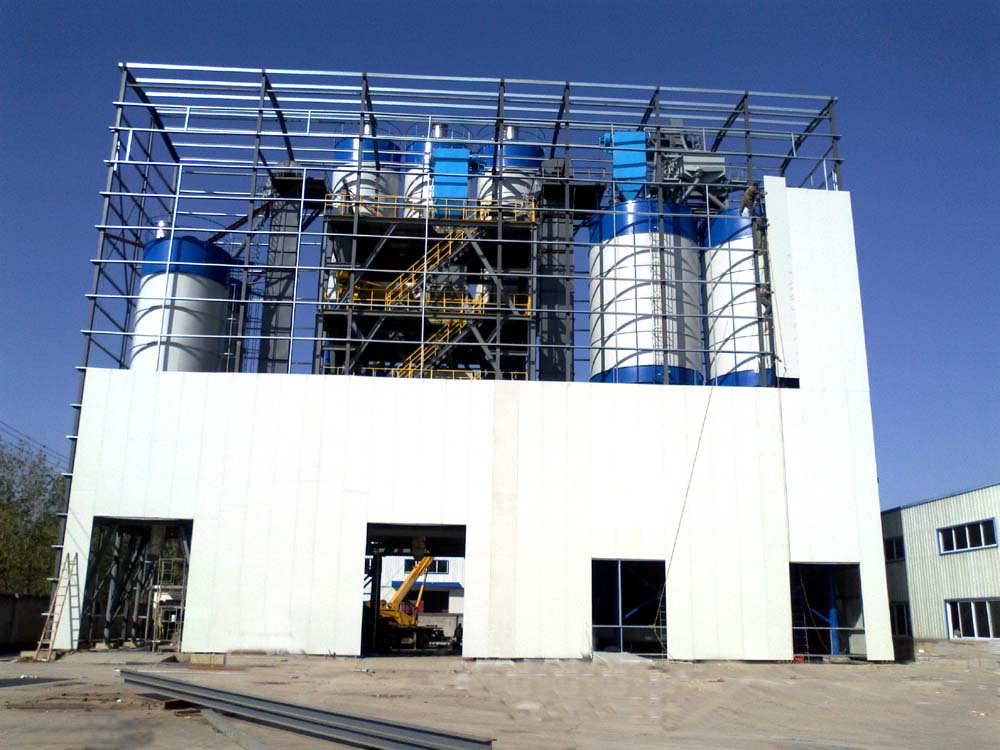

step-wise dry mortar production line is suitable for large-scale production. it can produce ordinary mortar or special mortar. it has many varieties, high efficiency, large output, large investment and large floor space.【】
24-hour service telephone
step-wise dry mortar production line is suitable for large-scale production. it can produce ordinary mortar or special mortar. it has many varieties, high efficiency, large output, large investment and large floor space.
1. patented technology of “filter bag self-locking sealing device”;
2, the super-weighing scale, the under-weighing scale, the jog precision, etc. improve the weighing accuracy;
3, the unique host blade layout form, the mixing efficiency is greatly improved, mixing ordinary mortar only takes one minute, which is more than 3times that of other domestic models;
4. the packaging machine is suitable for various powder materials, and the measurement error is 50 grams on average;
5, activated material cone plus double-axis reverse push mixer dry powder mortar mobile storage tank
6. dry powder mortar micro-admixture automatic metering feeding system
7. pneumatic flapper valve with constant air pressure and low pressure alarm
model |
main mixer |
total power(kw) |
theoretical productivity(t/h) |
floor area(㎡) |
gsw2000 | sw2000 | 200 | 40 | 400 |
gsw3000 | sw3000 | 240 | 60 | 550 |
gsw4000 | sw4000 | 400 | 80 | 600 |
gsw6000 | sw6000 | 800 | 120 | 800 |
gdw2000 | dw2000 | 200 | 40 | 400 |
gdw3000 | dw3000 | 240 | 60 | 550 |
gdw6000 | dw6000 | 800 | 120 | 800 |
